青石破碎機_大型青石錘破機_青石破碎機廠家

挖機非也非也1877 2025-03-16

275 0

青石破碎機_大型青石錘破機_青石破碎機廠家
青石是各種石材中環保的石材,因取材方便,具有耐磨、耐風化、無輻射等特點,破碎后廣泛用于建筑行業中。青石破碎生產線每小時可生產30-3000噸物料。青石破碎生產線設備有:給料設備、破碎設備、篩分設備、輸送設備、制砂設備、洗砂設備、除塵設備組成。
青石破碎機是青石破碎生產線的設備之一。主要作用是:將從山上開采的大塊青石料進行破碎,破碎至25-20mm以下成品料,破碎+整形,二合一設備。

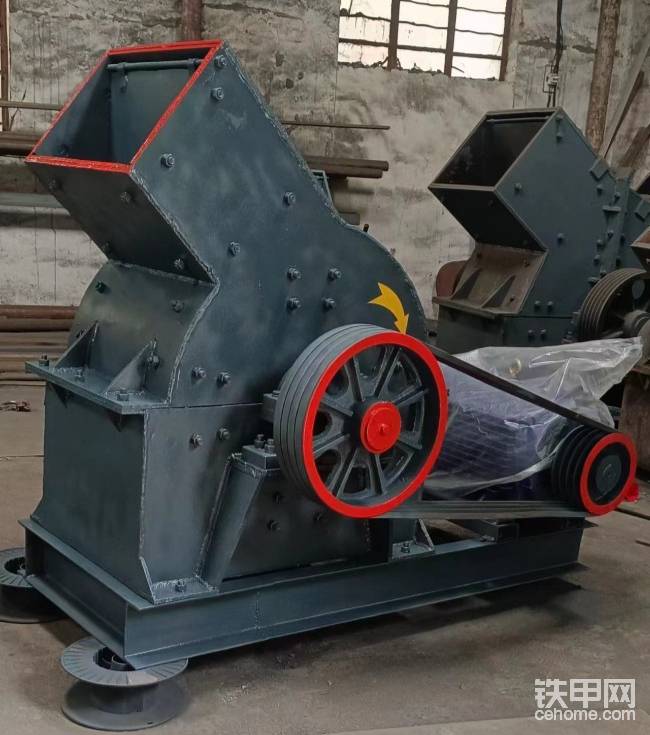

青石破碎機工作原理:電動機經三角帶、大帶輪帶動轉子高速旋轉;待破碎物料由喂料設備經入料口送入破碎腔、高速旋轉的轉子帶動錘頭對物料進行次打擊;獲得動能后的物料高速撞向反擊板得到二次破碎;碰撞反彈后或遭錘頭再次打擊或與其它物料相互碰撞。物料在碰撞的過程中逐漸向破碎腔下部的活動反擊板移動,當物料粒度小于錘頭與活動反擊板之間的間隙時,在自重和其它物料的壓擠下脫離破碎腔,從而結束一個完整的破碎過程。排出后的物料由篩選設備篩選后,部分大于選用標準的物料,需運送破碎機進行二次破碎。
青石碎石機是青石制砂生產線中的設備。主要用于:將破碎設備處理后的半成品料進行加工處理,獲得用于蓋房的大沙。
青石碎石機工作原理:青石碎石機主要由機體、破碎板、上轉子、下轉子、擺錘、旋轉驅動裝置、篩板等組成,該機在工作過程中兩個轉子相對運轉,進入破碎腔的物料由個轉子上的錘頭進行打擊破碎并獲得的動能后撞向第二個轉子,由于第二個轉子與物料飛來的方向相反,此時第二個轉子對物料的打擊速度等于兩個速度的疊加,物料經如此多次的循環打擊而破碎后經篦條的縫隙排出。破碎原料(石灰?guī)r、青石、礫石、煤矸石、煤、片麻巖等)通過ZG振動給料機均勻地喂入PCZ重型錘式破碎機初步破碎,經粗碎后的成品通過皮帶輸送機輸送至PC錘式破碎機破進一步破碎,二次破碎后的石料通過皮帶輸送機輸送至青石破碎機再次破碎,再次破碎整形處理的石料通過皮帶輸送機輸送至YK振動篩篩分出不同規格的石子,滿足客戶粒度要求的石子通過皮帶輸送機輸送至成品料堆,不合格的石子通過皮帶輸送機重新返回至青石破碎機再次破碎,形成閉路多次循環完成。
The bluestone crusher is an equipment in the bluestone sand production line. Mainly used for processing semi-finished materials processed by crushing equipment to obtain large sand for building.
Working principle of bluestone crusher: The bluestone crusher is mainly composed of a body, a crushing plate, an upper rotor, a lower rotor, a pendulum, a rotary drive device, a sieve plate, etc. During the operation of the machine, the two rotors rotate relative to each other. The material entering the crushing chamber is crushed by the hammer head on each rotor and the kinetic energy obtained is then collided with the second rotor. Since the direction of the second rotor is opposite to the direction of the material flying, the impact speed of the second rotor on the material is equal to the superposition of the two speeds. After so many cycles of impact, the material is crushed and discharged through the gap of the grate. Crushed raw materials (limestone, bluestone, gravel, coal gangue, coal, gneiss, etc.) are uniformly fed into the PCZ heavy-duty hammer crusher through a ZG vibrating feeder for initial crushing. The roughly crushed finished product is transported to the PC hammer crusher for further crushing through a belt conveyor. The stone material after secondary crushing is transported to the bluestone crusher for further crushing through a belt conveyor. The stone material after further crushing and shaping is transported to the YK vibrating screen for screening different specifications of stones through a belt conveyor. The stones that meet the customer's particle size requirements are transported to the finished material pile through a belt conveyor, and the unqualified stones are returned to the bluestone crusher for further crushing through a belt conveyor, forming a closed circuit for multiple cycles to complete.
